LOGIC GATES

In this post we are going to learn about all the logic gates, their symbols, truth table and the logic equations. The different logic gates that will be covered are:

 1.  BUFFER                                2.   NOT                   3.       OR                  4.    AND

5.   NAND                                    6.   NOR                   7.      XOR                 8.   XNOR

Binary Values:

When only two possible states are to represented, we represent them by a ‘1’ or a ‘0’

What do ‘1’ or ‘0’ represent?

1: TRUE                     0: FALSE

1: HIGH                      0: LOW

1: YES                        0: NO

Positive and negative Logic

Positive Logic

Negative Logic
Logic 1 represent  à +5V Logic 1 represent  à à 0V or Ground
Logic 0 represent  à 0V or Ground Logic 0 represent  à +5V

OR

Logic 1 represent  à  High Logic 1 represent  à Low
Logic 0 represent  à Low Logic 0 represent  à High

Truth Table:

A truth table is a tabular representation that describes the behaviour of the logic gate or circuit. It is a description of the relationship between the input and output. i.e. Given a circuit, it shows what the output will be upon application of the input

Logic Gates

  • Buffer:

A buffer  produces the same output as its input. Buffer increases the signal strength at the output, so the signal can travel longer distance

Figure-1: Buffer Gate

Truth Table

A

Y

0

0

1

1

Waveform

In order to show output of a practical buffer we have to take the propagation delay time (tpd) into account. The output is shown shifted to the right by an amount equal to tpd.

fIGURE-2: Buffer Gate Waveform
  • INVERTER (NOT) Gate

An inverter negates or complements the input at its output.

For Example:  If have a sample space of say decimal numbers as:

sample space = Σ(1,2,3,4,5,6)

Odd Numbers   A   = Σ(1, 3, 5)

Then

A’  = Σ( 2, 4, 6)  all elements of sample space which are not part of A

But in Binary the sample space is

sample space    S    = Σ(0, 1)

If          A   =  0;

Then

A’  =  1

Or simply

0’ = 1

1’ = 0

     Symbol

Figure-3: NOT Gate

Truth Table

A

Y

0

0

1

1



Waveform

Figure-4: NOT Gate Waveform



Cascading of Inverters

Inverters or NOT gates may be cascaded. The delay time at the output will then be additive of the propagation delay time of individual NOT gates.

Figure below shows the cascading of two inverters (NOT) gates

Figure-5: Cascading of NOT Gates

Waveform

Figure-6: Cascaded NOT Gate Waveform

The delay time at the output will then be additive of the propagation delay time of individual NOT gates.

Two inverters in cascade behaves like a buffer with delay = 2 tpd

In cascade the propagation of logic gates are added.

NOT Gate with Feedback

Figure-7: NOT Gate with Feedback Path

Waveform

Figure-8: Waveform of NOT Gate with Feedback

Cascading of two Inverters with feedback

Figure-9: Two NOT Gate in Feedback



Waveform

Figure-10: two NOT in Loop waveform

We can see that for two inverters connected with feedback the output get stable after 2 tpd.

*** Therefore if even number of NOT gates are connected with feedback(in a loop) then the output remains stable at ‘0’ or ‘1’.

*** If odd number of NOT gates are connected in a loop the output generated will be a square wave

** In general the square wave so generated will have period of 2*N tpd, wher N is the number of NOT gates.

For 3 NOT gates in a loop; the period will be 2 * 3 tpd = 6tpd

  • AND Gate

It produces a high output when all inputs are high.It is also called as all high Pass gate.

Logic Symbol

Figure-11: AND Symbol

Logic AND Operation: AND operation is denoted by a dot ‘.’.

Truth Table

A

B

Y=A.B

0

0

0

0

1

0

1

0

0

1

1

1

Logic Equation:

Y = A.B

Commutative Law:

A.B = B.A

Associative Law

  (A.B).C  = A.(B.C)

Figure-12. AND associative LAW

AND Gate with Enable / Disable Input:

Enable or Disable input is used to control the behavior of the input at the output.

Figure-13: AND with enable

We can describe the behavior as:

If En = ‘1’ then Y = A, else Y = ‘0’

Floating Inputs: An AND gate whose one of the input line is unconnected is called to be in floating stae. Such a state can be fixed by connecting its open input to a ‘1’ or ‘0’ depending on what is required at the output.

  • OR Gate

It produces a high output when any or all of its inputs are high. It is also called as any High Pass gate.

Logic Symbol

Figure-14. OR symbol

Logic OR Operation:

OR operation is denoted by a plus  ‘+’. Remember it is not an arithmetic addition

Truth Table

A

B

Y=A+B

0

0

0

0

1

1

1

0

1

1

1

1

Logic Equation:

Y = A + B

Commutative Law:

A+B = B+A

Associative Law

  (A+B)+C  = A+(B+C)

Figure-15. OR associative law

OR Gate with Enable / Disable Input:

Enable or Disable input is used to control the behaviour of the input at the output.

Figure-16. OR with enable

We can describe the behaviour of an OR gate with Enable input as:

If En = ‘0’ then Y = A, else Y = ‘1’

Floating Inputs: An OR gate whose one of the input line is unconnected is called to be in floating state. Such a state can be fixed by connecting its open input to a Vcc or GND depending on what is required at the output.



Figure-17. OR floating concept
  • NAND  Gate

It is an AND followed by a NOT gate. It produces a LOW output when all its inputs are high, High otherwise.

Logic Symbol

Figure-18. NAND

Truth Table

A

B

Y=(A.B)’

0

0

1

0

1

1

1

0

1

1

1

0

Logic Equation:

Y = (A. B)

Commutative Law:

(A. B)’  = (B.A)

Associative Law : NAND gate does not follow associative Law

  ((A. B)’.C)’   ≠    (A.( B.C))’

NAND Gate with three inputs

Figure-19. NAND with 3 input

Truth Table

A

B

C

Y = (A.B.C)’

0

0

0

1

0

0

1

1

0

1

0

1

0

1

1

1

1

0

0

1

1

0

1

1

1

1

0

1

1

1

1

0

NAND  Gate with Enable / Disable Input:

Enable or Disable input is used to control the behaviour of the input at the output.

Figure-20. NAND with Enable

We can describe the behaviour of an NAND gate with Enable input as:

If En = ‘1’ then Y = A’, else Y = ‘1’

Properties of NAND gate

(A.0)’  =  1

(A.1)’  = 0

(A.A)’ = A’

(A.A’)’ = 1

  • NOR  Gate

It is an OR gate followed by a NOT gate. It produces a HIGH output when all its inputs are LOW.

NOR Logic Symbol

Figure-21. NOR

NOR Truth Table

A

B

Y=(A + B)’

0

0

1

0

1

0

1

0

0

1

1

0

Logic Equation:

Y = (A +B)

Commutative Law:

(A+ B)’  = (B+A)

Associative Law :

NOR gate does not follow associative Law

  ((A + B)’ + C)’   ≠    (A + ( B + C))’

NOR Gate with three inputs

Figure-22. NOR with 3 input

Truth Table

A

B

C

Y = (A.B.C)’

0

0

0

1

0

0

1

0

0

1

0

0

0

1

1

0

1

0

0

0

1

0

1

0

1

1

0

0

1

1

1

0

Properties of NOR gate

(A + 0)’ = A’

(A + 1)’ = 1’ =0

(A + A) = A’

(A + A’)’ = 1’=0

NOR  Gate with Enable / Disable Input:

Enable or Disable input is used to control the behaviour of the input at the output.

Figure-23. NOR with Enable

We can describe the behaviour of an NOR gate with Enable input as:

If En = ‘0’ then Y = A’, else Y = ‘0’

  • XOR (Exclusive-OR / EXOR ) Gate

This gate is also called as the inequality detector. It produces a high output when odd number of inputs are high.

Symbol:

Figure-24. XOR Gate

Truth Table

A

B

Y = A Ꚛ  B

0

0

0

0

1

1

1

0

1

1

1

0

Logic Equation

Y = A Ꚛ B

Logic Circuit

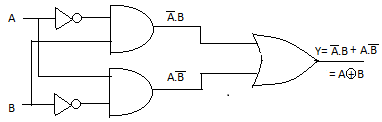

Figure-25. XOR Logic  circuit

Commutative Law

A Ꚛ B   = B  Ꚛ A

Associative Law

A Ꚛ (B  Ꚛ C) = (A Ꚛ B)  Ꚛ C)

Truth Table of XOR gate with three inputs

A

B

C

Y= A Ꚛ B  Ꚛ C

0

0

0

0

0

0

1

1

0

1

0

1

0

1

1

0

1

0

0

1

1

0

1

0

1

1

0

0

1

1

1

1

Properties of XOR gate

A Ꚛ 0 =  A  ( as buffer)

A Ꚛ 1 = A’  ( as inverter)

A Ꚛ A = 0

A Ꚛ A’ = 1

If A Ꚛ B = C then

            A Ꚛ C = B and

            B Ꚛ C = A        This shows that XOR is cyclic

Exercise

What will be the output if we cascade even number of XOR gate as shown in figure

Answer:

After 2 XOR gates, output will be ‘A’; therefore, even number of cascaded XOR will produce the same output i.e. ‘A’

  • XNOR Gate:

A XNOR not gate is an XOR gate followed by an inverter. It is an equality detector gate. The output is high when even numbe of inputs are ‘0’ or Low.

Symbol

Figure-27. XNOR Gate

Truth Table

A

B

Y = A ʘ  B

0

0

1

0

1

0

1

0

0

1

1

1

Logic Equation

Y = AB + A’.B’

OR

Y = A ʘ B

Logic Circuit

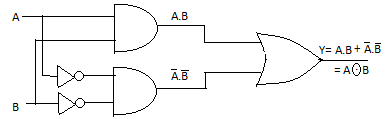

Figure-28. XNOR circuit

Commutative Law

A ʘ B   =  B ʘ  A

Associative Law

A ʘ (B ʘ C)   = A ʘ ( B ʘ  C)

Properties of NOR gate

A ʘ 0 = A’ ( as inverter)

A ʘ 1 = A ( as buffer)

A ʘ A = 1  ( Always equal)

A ʘ A’ = 0 ( Always unequal)

Truth Table XNOR gate with three inputs

A

B

C

X = A ʘ B

Y= X  ʘ C

0

0

0

1

0

0

0

1

1

1

0

1

0

0

1

0

1

1

0

0

1

0

0

0

1

1

0

1

0

0

1

1

0

1

0

1

1

1

1

1

To summarize

XOR searches for odd number of 1’s

XNOR searches for even number of 0

For even number of inputs’s, XNOR = XOR’; this is verified in following truth table

A

B

XOR  (A Ꚛ B  )

XNOR (A ʘ B)

0

0

0

1

0

1

1

0

1

0

1

0

1

1

0

1
