Stack and subroutine are powerful mechanism in 8085 microprocessor for modularizing the assembly program,

Stack

A stack is a first in last out memory locations in the r/w memory and is used during the execution of a program. This memory is generally specified by the programmer in the main program.

To point in the stack memory every processor has a pointer known as the stack pointer. To use the stack, the stack pointer is fist loaded with the beginning address of the stack memory by using the instruction LXI SP, XXXXh. Where XXXXh denotes a 16-bit memory address. The stack may grow up or down. In 8085 the stack grows downward in the reverse order, that means, that once the stack is defined, storing of the data begins at a memory address one less than the address in the SP.

As a general rule, the stack is initialized at the higher available memory location to prevent the program from being destroyed by the stack information. The size of the stack is limited only by the available memory.

Instructions Used:

The stack uses only two instructions :

    • PUSH – to store register pair contents on the stack
    • POP     – to retrieve the contents from top two locations into the register pair.

Also the microprocessor automatically stores the contents of the PC when a subroutine is called. And top two stack memory content retrieved in PC when returning from subroutine.

Usage:

LXI SP, XXXXh
Initialize SP to the beginning of the stack memory
PUSH Rp
; where Rp can be register pair BC, DE, HL or PSW (A+Flag).

// Decrements the SP and copies contents of high-order register; again the decrement the //SP and then copy the contents of low-order register in memory pointed by SP

PUSH B
//decrement SP, copy high byte (Reg B); decrement SP and copy  low byte (reg-C)
PUSH PSW
// decrement SP, copy high byte (Reg A); decrement SP and copy  low byte (flag register)
POP Rp
// copies contents of top two memory location in the specified register pair.

// first the contents from stack top indicated by SP is copied in low-order register and SP //incremented; then the high byte is copied in the high byte register and SP again //incremented

Example:

LXI SP, 2095h

LXI H, 1234h

PUSH H

POP B

The 1st instruction in the above code initializes the stack pointer (SP) to 2095 indicating beginning of the stack memory.

The 2nd instruction load register pair HL with the data 1234h with high-order byter “12” in H and low-order byte “34” in register L.

Copy contents of register pair “HL” in two locations stack memory 2094 and 2093 as stack grow down.

Figure-1: PUSH and POP operation on stack

Finally the instruction POP B retrieves top two stack locations in register pair BC with content of location 2093 in low-order  register ‘C’ and SP incremented. Then copies content of loactioon 2094 in the high-order register ‘B’.

Subroutine

A  subroutine is used to modularise the main program. It is a set of instructions that are written separately from the main program to perform tasks that repeatedly occurring tasks. 8085 has two instructions CALL and RET for calling the subroutine and returning from the subroutine.

  1. Unconditional subroutine CALL and RET instructions

CALL label / 16-bit address

–          A three byte instruction

On execution of this instruction, the content of the program counter (PC), which is the address of the instruction following the CALL instruction, is saved on to the stack, and execution of the program is transferred to subroutine.
RET

–          it is one byte instruction

On execution of this instruction, the content of the stack is retrieved in PC and the execution of the main program continues.

Example: Write a program in AL of 8085 to provide given ON/OFF time to three traffic lights(G,R, Y) and two pedestrian sign (walk and Don’t walk). The signal lights and the sign are turned ON/OFF by data bit of an output port as shown below:

Green light                  D0       15 seconds

Yellow Light               D2       5 seconds

Red Light                    D4       20 Seconds

Walk                            D6       15 seconds

Don’t walk                  D7       25 seconds

Traffic and pedestrian flow are in same direction; the pedestrian should cross the road when light is Green.

Solution:

Analysis of Lights (LEDs in this example)

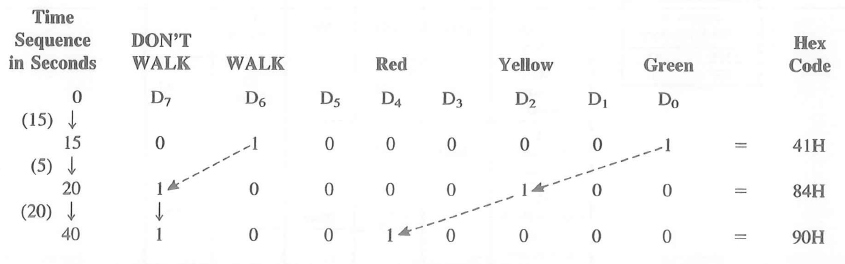

Fig-2: Traffic Light Analysis

Flowchart for traffic light

Figure-3: Flowchart of Traffic Light



Complete Program

Main Traffic Light Program Delay Subrouting
Address Opcode Mnemonic Address Opcode Mnemonic
XX00 31 99  00 LXI SP, XX99 XX50 D5 Delay : PUSH D
XX03  3E  41 START: MVI A, 41h XX51 F5             PUSH PSW
XX05 D3   PORT# OUT PORT# XX52 11 LO, HI_BYTE Seconds: LXI D, count
XX07 06 0F MVI B, 0Fh XX55 1B Loop1 :    DCX D
XX09 CD 50 XX CALL Delay XX56 7A                 MOV A, D
XX0C 3E 84 MVI A, 84h XX57 B3                 ORA E
XX0E D3 PORT# OUT PORT# XX58 C2  55  XX                 JNZ loop1
XX10 06 05 MVI B, 05 XX5B 05                 DCR B
XX12 CD 50 XX CALL Delay XX5C C2  52  XX                 JNZ seconds
XX15 3E 90 MVI A, 90h XX5F F1                POP PSW
XX17 D3 PORT# OUT PORT# XX60 D1                POP D
XX19 06 14 MVI B, 14h XX61 C9                RET
XX1B CD 50 XX CALL Delay
XX1E C3 03 XX JMP START

As seen in the program coding for main program and subroutine program, the main program starts from memory location XX00h and continues up to XX1Eh. the delay subroutine is call three time from main main program from address XX09h, XX12h and XX1Bh and a result the return address XX1C, XX15h and XX1Eh respectively are saved on to the stack and retrieved when RET instruction are encountered in the delay subroutine. The stack pointer is initialized in the beginning of the main program to XX99h, so that the stack stores the return address at XXFF and XXFE locations

Figure-4: Multiple-Call mechanism



  1. Conditional subroutine CALL and RETURn instructions
Conditional Call Instructions
Conditional Return Instructions
Remarks

CC
RC
Call / return on carry (when cy=1)
CNC
RNC
Call / return on no carry (when cy=0)
CZ
RZ
Call / return on zero (when Z=1)
CNZ
RNZ
Call / return on zero (when Z=0)
CM
RM
Call / return on minus (when S=1)
CP
RP
Call / return on minus (when S=0)
CPE
RPE
Call / return when parity is even (when P=1)
CPO
RPO
Call / return when parity is odd  (when P=0)





Comparison of Subroutine CALL/RET and PUSH/POP instructions

CALL and RET
PUSH and POP
On a call to subroutine, uP automatically stores the return address (i.e. address of next instruction) onto the stack
PUSH instruction stores the content of the register pair onto the stack
While saving the return address on the stack the SP is decremented by two. Procedure is decrement SP and save the contents
On executing the PUSH instruction, the SP is decremented by two. Procedure is decrement SP and save the contents
When RET is executed, the contents from top two locations are save in the PC. Procedure is read the content and increment the SP
On executing the POP instruction, the contents from top two locations are save in the specified register pair. Procedure is read the content from top of stack and increment the SP
There are unconditional and conditional CALL and RET instructions
There is no conditional PUSH or POP instructions.
