System Bus and Memory Transfer

Bus and Memory Transfer:

Introduction:  as discussed in the beginning of this chapter that the micro-operation are the operations, such as the transfer, performed on the data stored in the registers. A simple system may contain few registers and the mechanism can be very simple as described below in the register transfer notation:

T1 : R2 <– R0

T3: R2 <– R1

The two statements have a common destination but two different sources of data. Either the content of R0 or R1 is loaded in R2. Registers shown in figure are 1-bit in length (i.e. FF), however they will be of size in multiple of bytes. For this simple case we can employ a 2×1 MUX to perform the transfer operation described register=transfer notation..

Figure : Use of Mux to transfer from two sources

Bus System

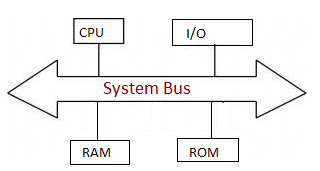

Figure-shows the general architecture of a hypothetic digital system. It uses a system bus for interfacing to peripherals such as CPU, RAM, ROM and I/O unit. Also the processor (CPU) has an internal bus to enable data transfer among different registers within the it.

Figure – Communication through bus

Quite often a digital system such as a processor also called as a CPU will have a number of registers and a will have an internal bus to transfer data from a register to any one the destination registers. Usually size of the registers in bytes say 1-byte, 2-byte etc. Data transfer for such cases would be require a set of wires generally called as BUS.

So we define a bus as a group of wires through which binary information is transferred among registers one at a time. For parallel transfer the number of wires equals the number of bits of the register. The common bus system can be constructed with multiplexers and decoders. Multiplexers used to select one of the many source registers whereas the decoder used to select one of the many destination registers.

All internal and external operations take place over a set of wires called as “System Bus”. Internal to the CPU the system bus can be organized in a number of ways. These are:

  • System bus using multiplexers
  • System bus using tri-state buffers

System bus using multiplexers

This is more common type of system bus. The source registers bits are selected by multiplexers and the multiplexer outputs are connected onto the data bus. A bus system for transferring word size of four-bits (4-bit registers) is shown in figure-1. Here the content of the register which is 4-bit is transferred onto the bus.

We use four multiplexers of size 4×1 with common select lines for transferring the four bits of a registers. As seen in figure, when control signal S1S0=00, all the multiplexers select one of the input from the same register i.e. register-A.

Figure-1: Common Bus System using Mux

Operational table for register transfer onto a common bus

Select line of MUX
Register Selected for inputs
MUX line selected in All MUXes
Content transferred on 4-bit common Bus
00
Register A
First input of all MUX
A3A2A1A0
01
Register B
2nd input of all MUX
B3B2B1B0
10
Register C
3rd  input of all MUX
C3C2C1C0
11
Register D
4th input of all MUX
D3D2D1D0



The transfer of information from some source register to a destination register is performed by transferring the content of the register to the bus and then the contents of the bus to a destination register. This can be  can be accomplished by connecting the bus lines to the inputs of all destination registers and activating the load control of the desired destination register. The symbolic notation for this operation is shown as:

BUS <–  C,       R1 <–  Bus

or simply as:

R1 <–  C

This is shown in below:

Figure – system bus using MUX and Decoder

The number of multiplexers needed to construct the bus is equal to n, the number of bits in each register. The size of each multiplexer must be k x 1 since it multiplexes k data lines

  • So number of MUX = No. of bits in each Registers
  • Size of MUX = Number of data lines it multiplexes

The CPU reads the instruction from the Memory decodes it and generates necessary timing

Tri-State Logic:

We have learnt that a logic gate exhibit two binary states these are logic ‘0’ and logic ‘1’. A tri-state or three-state gate is a digital circuit that exhibits three states. Two same as that in logic gates and the third state is high impedance state. The high-impedance state behaves like an open circuit, which means that the output is disconnected and does not have a logic significance. The logic symbol for a tri-state buffer is shown in figure-2 below:

Figure-2: Tri-State Buffer

A tri-state buffer can be used as a 1-bit bus line .  When the control input is ‘0’, the buffer is in high impedance or OFF and the input then is blocked from appearing on the output.

We can us multiple sources to be commented to the bus line by use of decider.  Figure-3 shows four buffers connected to one single using a decider,



Figure-3: Single line bus

Bus line with Tri-State-buffers.

Here, in  figure-4 we expand the concept of figure-3 to construct a 2-line bus using tri-state buffers. Two decoders are used for transferring the two-bit contents of the registers in to the bus, more are required flor two-but transfer four such decoders will be required for four bit transfer

Figure-4: Bus using Tri-State Logic

We can expand this circuit by connecting two more decoders and rewiring for making bus size as four-bit. The operation then is described by the following truth table.

Decoder Select Line (S1S0)
Decoder  Bit Selected for Bus transfer
Register number and the bits selected for transfer
00
Bit-0 of all  decoders
Register-A

A3A2A1A0

01
Bit-1 of all  decoders
Register-B

B3B2B1B0

10
Bit-2 of all  decoders
Register-C

C3C2C1C0

11
Bit-3 of all  decoders
Register-D

D3D2D1D0

Memory Transfer

The memory unit uses additional control signals. These are chip select, memory read, memory write. When a read operation is performed, the data from a specific address given in address register is loaded into the data register. Similarly, for a write operating, the data from the data register is transferred at the location given in address register.
